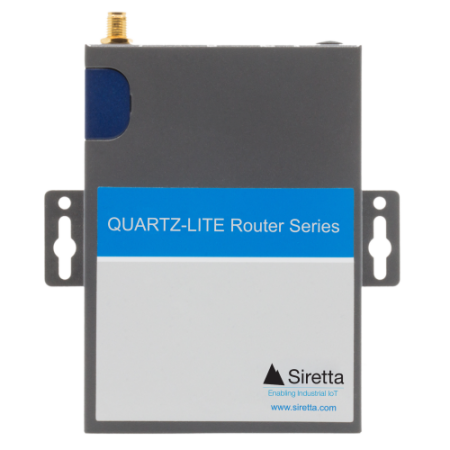

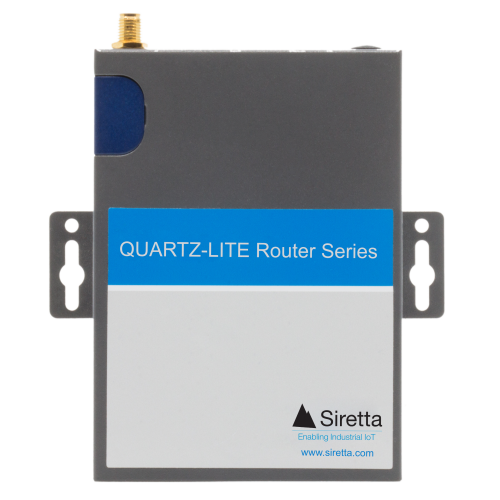

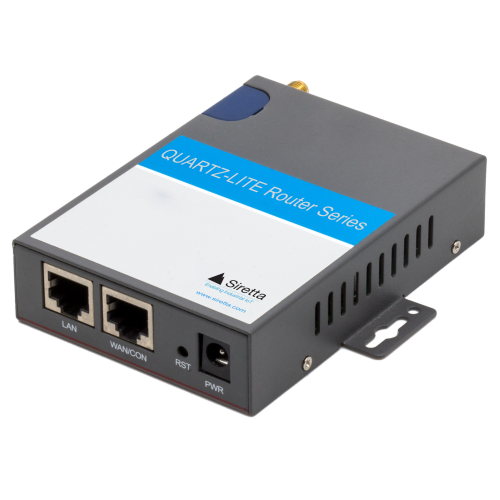

Dual Port Small Footprint LTE Router (EU)

The QUARTZ-LITE-LTE router is a high speed industrial router designed for transferring large amounts of data via the cellular network. The QUARTZ-LITE-LTE’s fast data transfer capability reaches up to 100Mbps download and up to 50Mbps upload speed. It also has fall-back to 3G/UMTS communication, should 4G/LTE be unavailable. It is well suited for IoT mobile broadband applications, offering reliable, secure wireless connectivity.

The QUARTZ-LITE-LTE router has a robust design, coming in a small sized, metal enclosure, making it ideal for deployment in industrial embedded applications. The QUARTZ-LITE software supports VPN security allowing the router to be used in commercial as well as industrial applications.

The QUARTZ-LITE-LTE router meets many of the needs for management of remote communication and therefore has applications in renewable energy, security, digital signage, transport, street furniture, traffic control, parking systems, environmental monitoring, and many other IoT mobile broadband applications.

The QUARTZ-LITE router comes as standard with a single SIM slot, dual port ethernet capability and has the option to come with, or without, Wifi. It also has optional GPS capability, which means the router is ideal for asset tracking or access management.

European 4G / LTE bands
High speed data via LTE network
Strong resistance to electromagnetic interference
Built-in watch dog, multi-link detection
Compact industrial design
Excellent temperature endurance
VPN: PPTP, L2TP, GRE, IPSec
Optional GPS

Specifications

UMTS Network Coverage
B1 (2100MHz)
B5 (850MHz)
B8 (900MHz)

LTE Network Coverage
B1 (2100MHz)
B3 (1800MHz)
B5 (850MHz)
B7 (2600MHz)
B8 (900MHz)
B20 (800MHz)

Mechanical Specifications
Operating temperature range: -30 to 70°C
Storage temperature range: -40 to 85°C
Relative humidity: <95% (non-condensing)

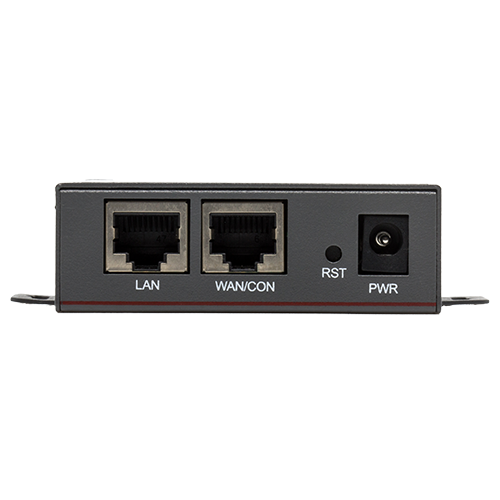

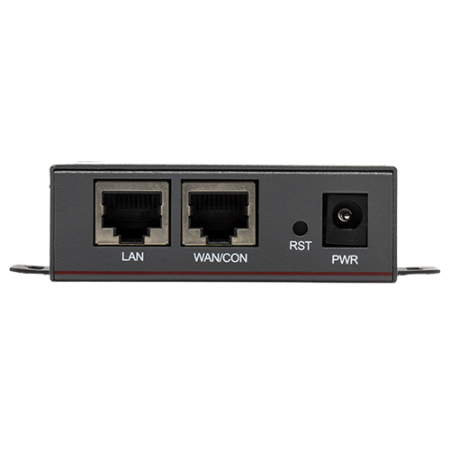

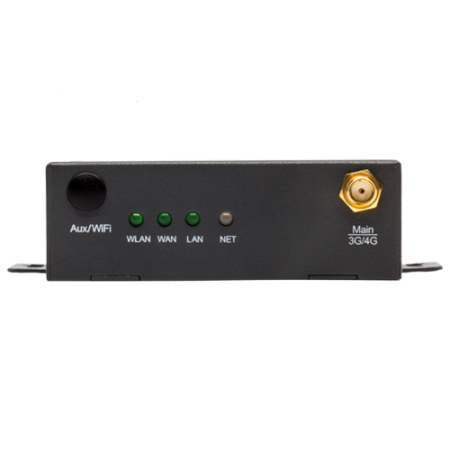

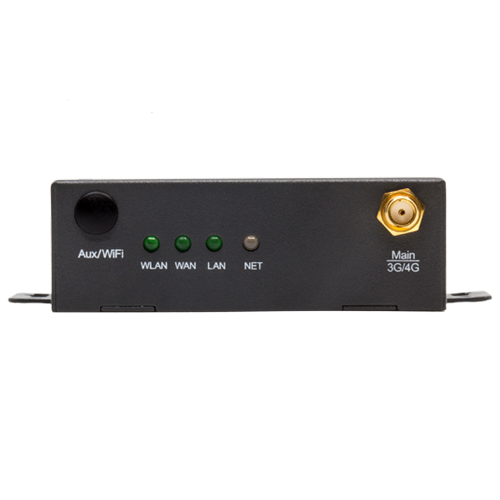

Physical Interfaces
2 x 10/100Mb LAN (2 x LAN)
1 x 3G/4G SMA female antenna interface
1 x standard mini SIM interface (2FF)
1 x standard DC power interface

Power and Consumption
Idle: 80mA @ +12V DC
Single mode comms: 320mA @ +12V DC
Dual mode comms: 600mA @ +12V DC
Power Supply: 7.5V – 32V DC

Certification
CE
RoHS
CCC
