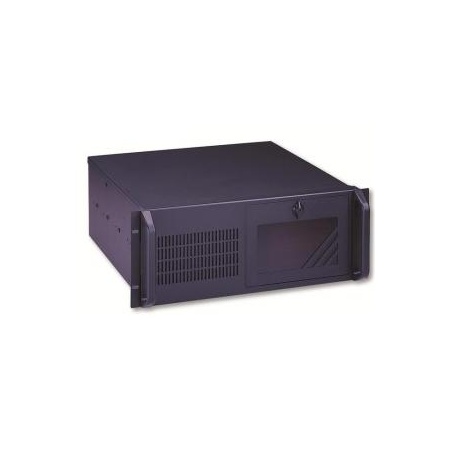

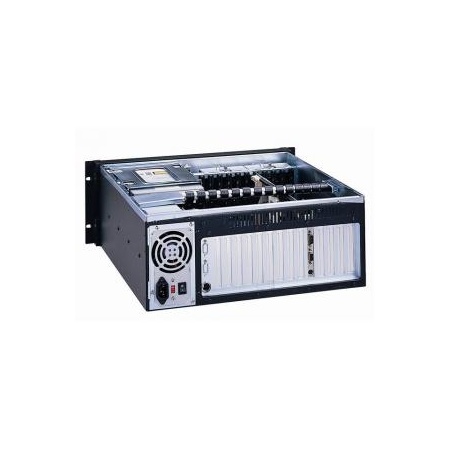

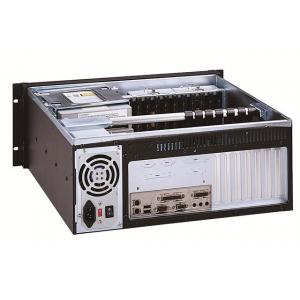

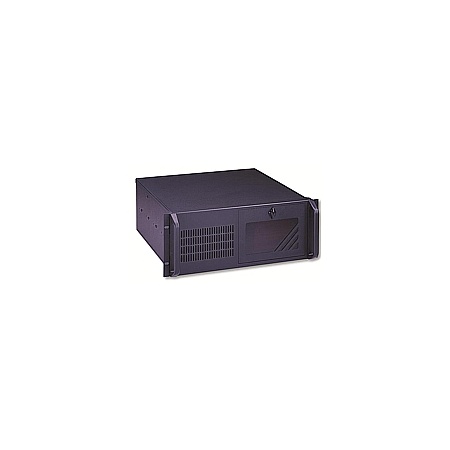

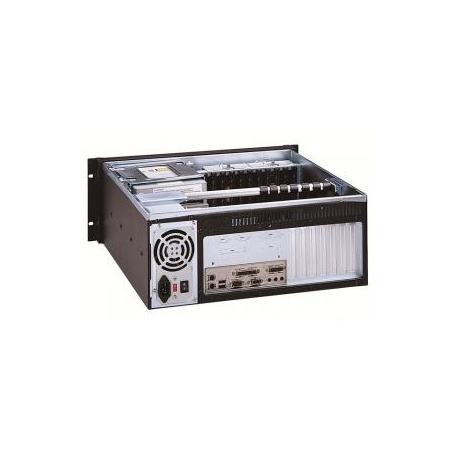

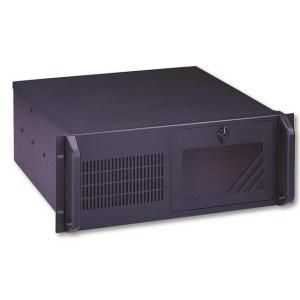

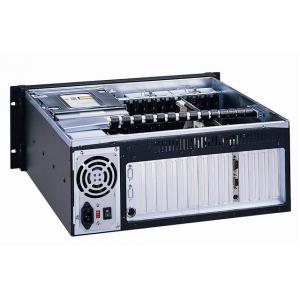

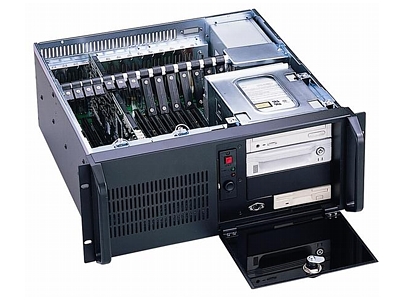

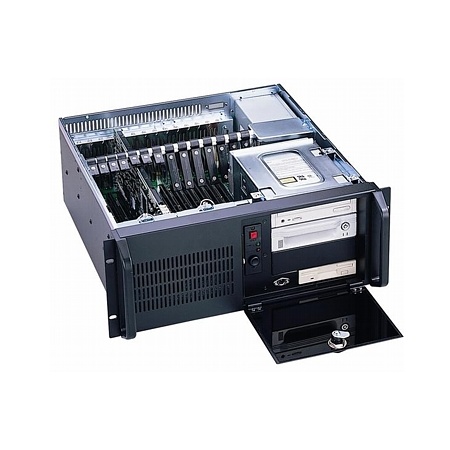

GH-402

Supports ATX M.B max. 12" x 9.6" or 14-Slot Passive Backplane Depth 451mm. 3 x 5,25" drives & 1 x 3,5" drive, black.

Main Features

Model: GH-402
Max. Board Size: ATX (12" x 9.6") or (SR Version) GHP-2008, GHP-2208, GHP-2014, GHP-2214, GHP-P14P4, GHP-2214D
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon or Passive Backplane (SR Version)



Specifications

Standard: EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Bays: 3x 5.25" & 1x 3.5"
Power Supply: PS/2 Size Single up to 700W ATX or Mini Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 200mm
Cooling Units: 2x (92mm = 51CFM ea.) Hot Swap Fans
Expansion Slot: 7 Slots
Connector Port (front): 2x USB Ports
Indicators:
Buttons: Power ON/OFF, Momentary(Pushbutton),System Reset
Crossbar:
Thermal Card:
Front Door(s): Drive Panel Door with Keylock
Air Filter:
Dimensions(W x H x D): 483x177x451mm (19" x 7" x 17.8")
Weight: 16.5 kgs / 36.4 lbs
Cu. ft.: 4.4
Carton Size: 61.8 x 34 x 59 (24.3" x 13.4" x 23.2")
Humidity: 5% - 95% Non-condensing
Product Applications:



Optional accessories

HDD Drive Accessories:
Slide Rails:
Chassis Height: 4U
