GHI-210

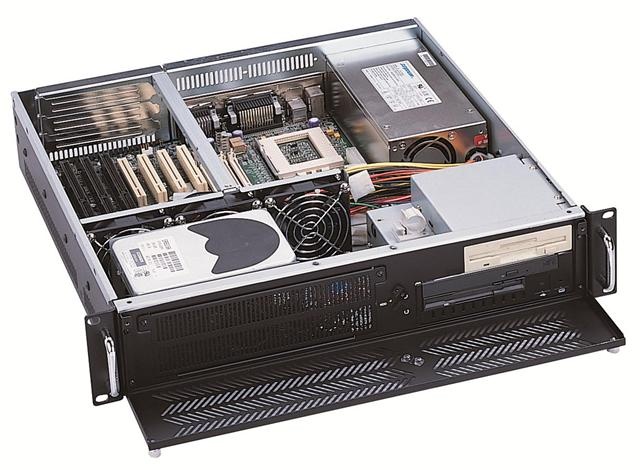

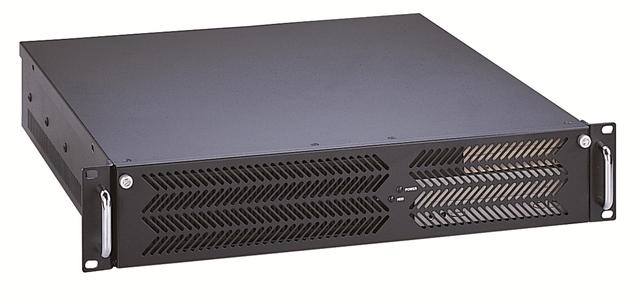

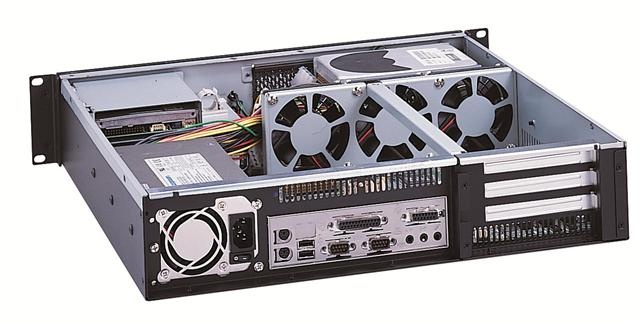

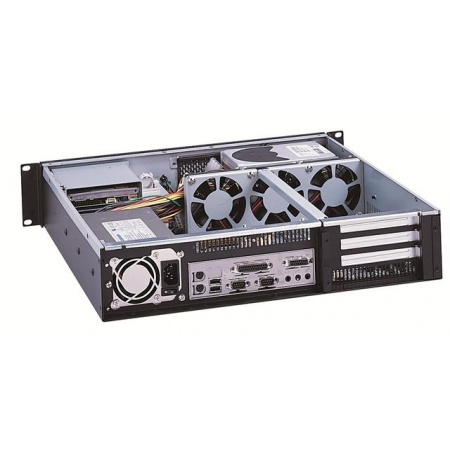

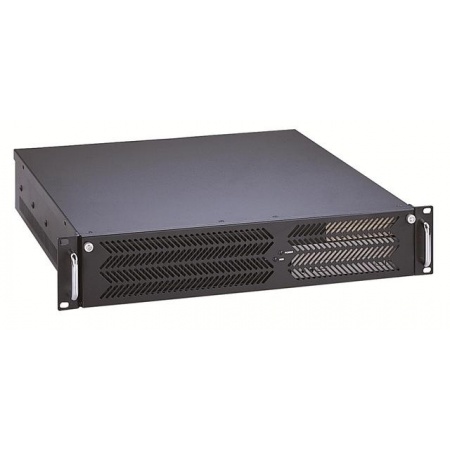

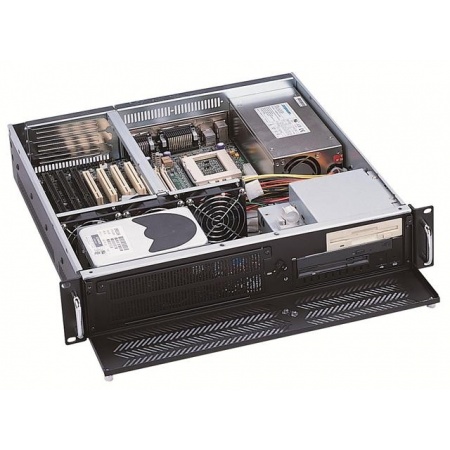

19" Rackmount Chassis 2U Supports ATX M.B max. 12" x 9.6" Depth 450mm 1 x 5.25" & 1 x 3.5" & 3 x 3.5" HDD

Main Features

Model: GHI-210
Max. Board Size: ATX (12" x 9.6")
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon



Specifications

Standard: EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Bays: 1x 5.25"(or 1xSlim CD-ROM & 1 x 3.5"HDD ) & 1x 3.5" & 3x 3.5" HDD
Power Supply: 2U Single up to 400W or Redundant up to 350W ATX P/S (Rear Installation)
Cooling Units: 3x (80mm = 42.5CFM ea.) Fans
Expansion Slot: 2 or 3x Horizontal ISA/PCI/AGP Option Slots
Connector Port (front): 2x USB Ports
Indicators:
Buttons: Power ON/OFF Momentary (Square), System Reset
Crossbar:
Thermal Card: NA
Front Door(s): Single Door with 2 Thumbscrews
Air Filter: Inside Front Panel (Washable)
Dimensions(W x H x D): 483 x 88 x 450mm (19" x 3.5" x 17.7")
Weight: 11.6 kgs / 25.6 lbs
Cu. ft.:
Carton Size: 63 x 24.8 x 57.4(24.8" x 9.8" x 22.6")
Humidity: 5% - 95% Non-condensing
Product Applications:



Optional accessories

HDD Drive Accessories:
Slide Rails:
Chassis Height: 2U
