IGAP-6620+

Wireless Access Point, Dual RF IEEE 802.11 a/b/g/n with 2x10/100/1000Base-T(X)

Main Features

  • High Speed Air Connectivity: WLAN interface support up to 300Mbps link speed
  • Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
  • Support X-Roaming < 60 ms
  • Dual RF for redundant wireless communication
  • Support wireless load balance
  • Support MAC Filter
  • Support Long Distance Air Connectivity
  • Provide Digital Input and Digital Output
  • Support AP/Bridge/Repeater/AP-Client Mode
  • Switch Mode Supported: Daisy Chain support to reduce usage of switch ports
  • Dual redundant Ethernet port support redundant mode
  • Wireless connecting status monitoring
  • Secured Management by HTTPS
  • Event Warning by Syslog, Email, SNMP Trap, Relay and Beeper
  • Rigid IP-30 housing design
  • DIN-Rail and Wall-mount enabled

Overview

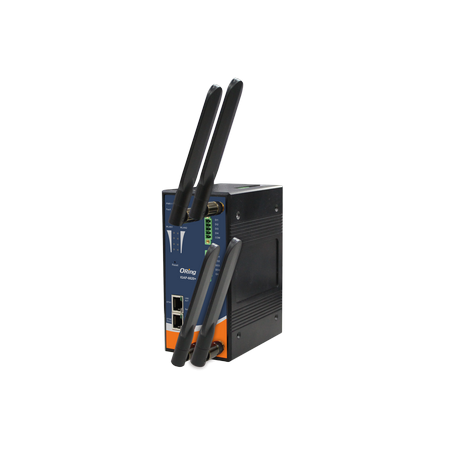

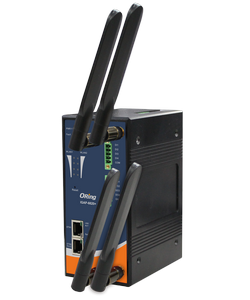

IGAP-6620+ is a reliable WLAN Access Point with 2 Ethernet Gigabit ports and dual RF in IEEE 802.11 a/b/g/n wireless modules. It can be configured to operate in AP/Bridge/Repeater/AP-Client mode. You are able to configure IGAP-6620+ by WEB interface via LAN port or WLAN interface. IGAP-6620+ provides dual Ethernet ports in switch mode, so that you can use Daisy Chain to reduce the usage of Ethernet switch ports. In addition, IGAP-6620+ also provides P.D. feature on ETH2 which is fully compliant with IEEE802.3af PoE P.D. specification. Therefore, IGAP-6620 is one of the best communication solutions for wireless applications on the industrial network.

Ordering Information

Model No. Description
IGAP-6620+_US Industrial Outdoor Dual RF in IEEE 802.11 a/b/g/n wireless access point with 2x10/100/1000Base-T(X) PoE P.D., US band
IGAP-6620+_EU Industrial Outdoor Dual RF in IEEE 802.11 a/b/g/n wireless access point with 2x10/100/1000Base-T(X) PoE P.D., EU band
