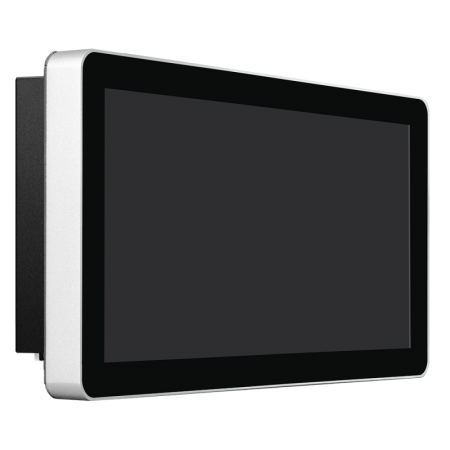

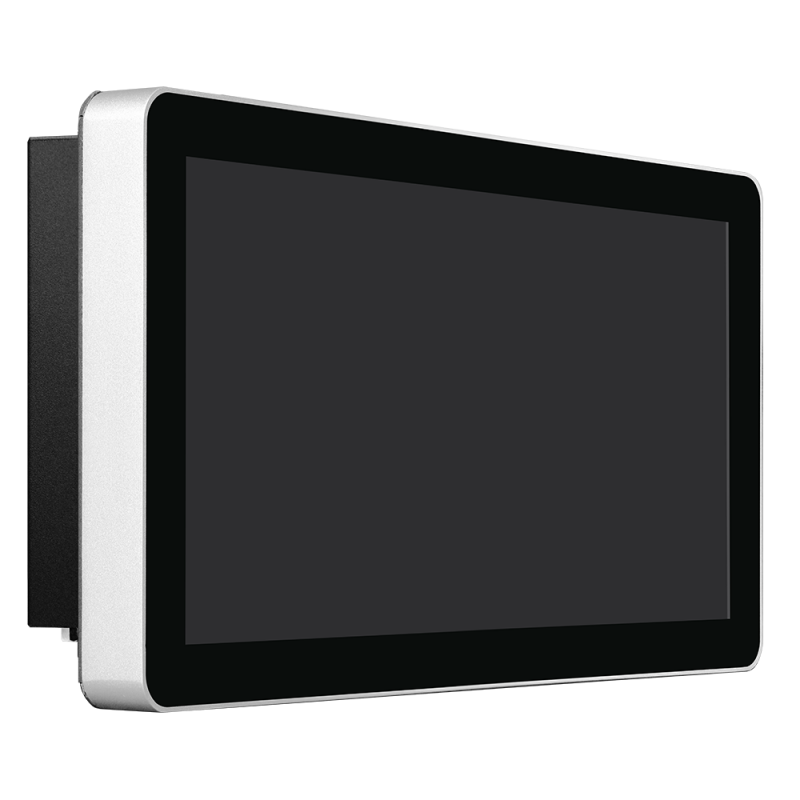

12.1" P-cap Panel PC with with 7th/6th Gen Kaby Lake-U/Skylake-U Core™ i7/i5/i3, IP65 / 66 Bezel-Free and Wide Range Power Input
Main features
- 7th/6th Gen Kaby Lake-U/Skylake-U Core™ i7/i5/i3
- IP65 / 66 Front Panel/span>
- Bezel-Free Design
- 12.1" P-cap Flat Bezel
- Fanless Design
- 3-Pin Power Input Terminal Block
- DC 9~36V Wide Range Power Input
- 1280*800 Resolution
- 500 nits LED Backlight
- 1000 nits LED Backlight (Optional)
- Optional to Resistive Touch
Specifications
|
System
|
|
Processor
|
7th/6th Gen Kaby Lake-U/Skylake-U Core™ i7/i5/i3
|
|
System Memory
|
DDR4 2133 MHz SO-DIMM, up to 16 GB
|
|
System Chipset
|
-
|
|

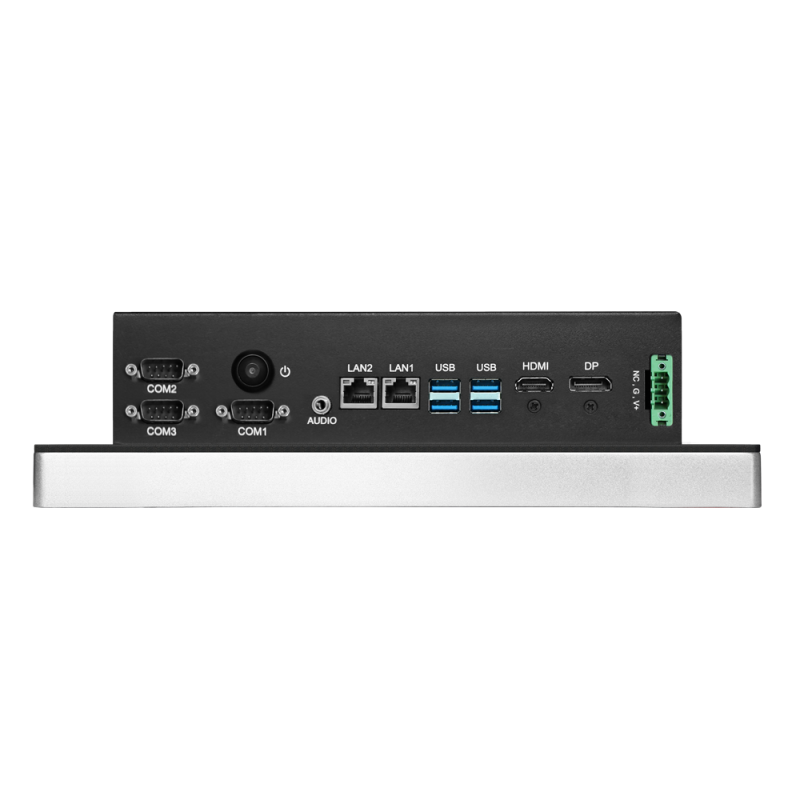

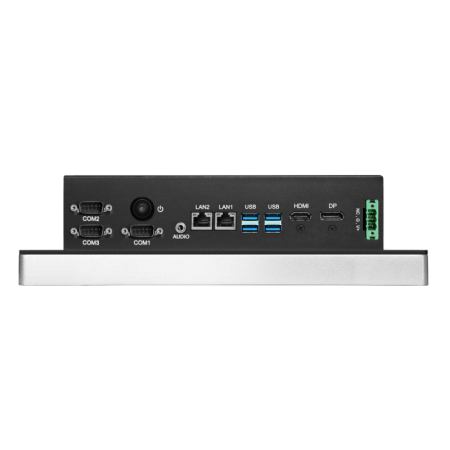

External I/O Port
|
‧4 x USB 3.0
‧2 x GbE LAN (I210-AT & I219LM, AMT 11.x supported)
‧1 x Display Port
‧1 x HDMI
‧3 x RS-232
‧1 x RS- RS-232/422/485(COM1)
‧1 x Audio
‧1 x Power press button
‧1 x 3-Pin Power Input
|
|
Storage
|
‧2 x SATA3 (6.0Gb/s)
‧1 x mSATA (full size mini-PCIe)
|
|
Expansion
|
2 x MiniPCIe Slot
|
|
Operating System
|
6th Gen CPU for Win 7 Pro/ WES7 / Win 8 / Win 10
7th Gen CPU for Win 10
|
|
LCD
|
|
Display Type
|
12.1" TFT-LCD
|
|
Max. Resolution
|
1280*800
|
|
Max. Color
|
262K/16.7M
|
|
Luminance (cd/m2)
|
500 nits
|
|
View Angle
|
89/89/89/89 |
|
Backlight Lifetime
|
30,000hrs
|
|
Touch Screen
|
|
Type
|
12.1" P-cap USB
|
|
Power Requirement
|
|
Power Type
|
3-Pin Power Input Terminal Block
DC 9~36V Wide Range Power Input
|
|
Mechanical
|
|
Construction
|
Aluminum Front Bezel and Metal Case
|
|
IP Rating
|
Front Panel IP65
Front Panel IP66 Compliant
|
|

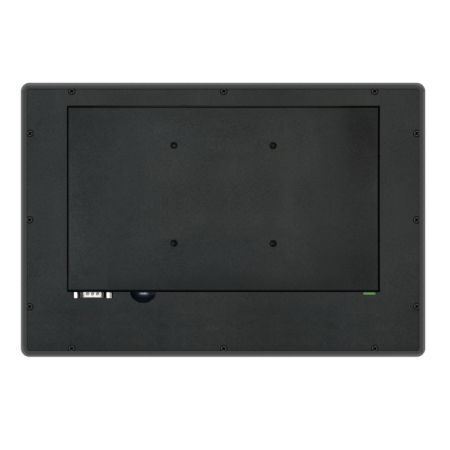

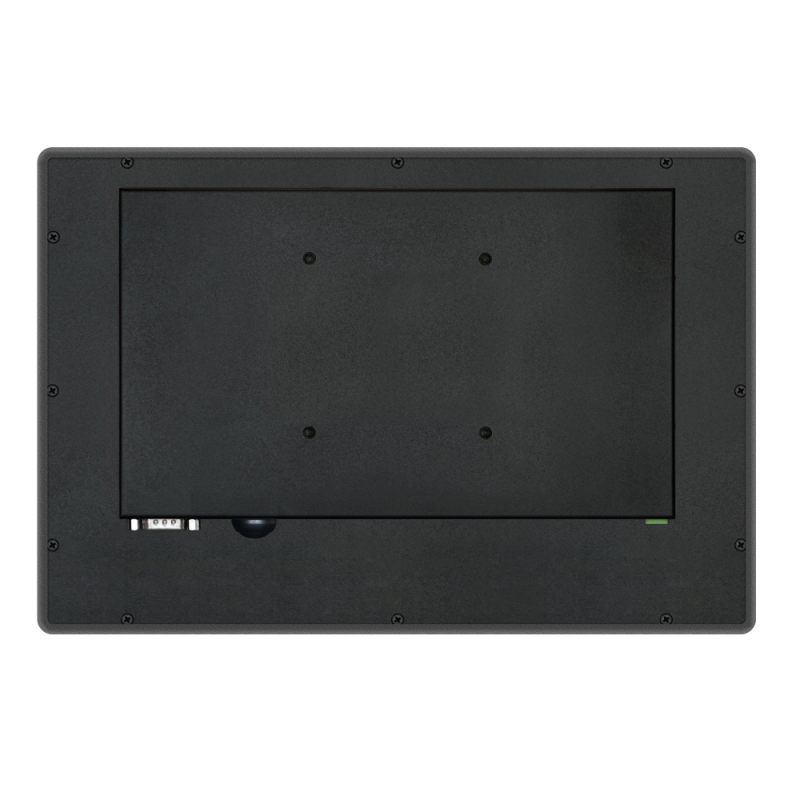

Mounting
|
Panel Mount
VESA Mount
|
|
Dimension
|
TBC
|
|
Environment
|
|
Operating Temp.
|
-20~60 °C，(Optional to -30~70°C)，IEC-60068-2-1/2/14 |
|
Storage Temp.
|
-30~70 °C
|
|
Humidity
|
10~90% @40 °C, non-condensing
|
|
EMC
|
FCC / CE Class A Certification
CE Class B Compliant |
|
Vibration
|
1.5 Grms @10~500Hz, IEC-60068-2-64 |
Ordering Information
|
Ordering Information
|
|
LPC-P121W-15
|
10.1" P-cap Panel PC with i3-6100U, 1280 x 800 Reso, 500 nits, DC 9~36V Power Input, including a 3-Pin Power Adapter (12V/7.5A)
|
|
LPC-P121W-16
|
10.1" P-cap Panel PC with i5-6300U, 1280 x 800 Reso, 500 nits, DC 9~36V Power Input, including a 3-Pin Power Adapter (12V/7.5A)
|
|
LPC-P121W-17
|
10.1" P-cap Panel PC with i7-6600U, 1280 x 800 Reso, 500 nits, DC 9~36V Power Input, including a 3-Pin Power Adapter (12V/7.5A)
|
|
LPC-P121W-18
|
10.1" P-cap Panel PC with i5-7300U, 1280 x 800 Reso, 500 nits, DC 9~36V Power Input, including a 3-Pin Power Adapter (12V/7.5A)
|
| WFK-024 |
Wi-Fi kits w/ cable & Antenna (2.4GHz, 802.11 b/g/n, 1T1R)
|
| WFK-524 |
Wi-Fi kits w/ cable & Antenna (2.4 & 5GHz, 802.11 a/b/g/n/ac + BT, 2T2R)
|
| 04-US-26-00002 |
120 W / 24V power adapter with 3 pin terminal block (For High Brightness Model)
|
| Ordering Code |
| LPC-P121W-10 |
-H / -OB / -G / -AG / -AR / -B / -V / -T |
| H = High Brightness 1000 nits LED backlight |
| OB = Optical Bonding |
| G = Glass withtout touch |
| AG = Anti-Glare |
| AR = Anti-Reflection |
| V = Vandal Proof Glass (By Project) |
