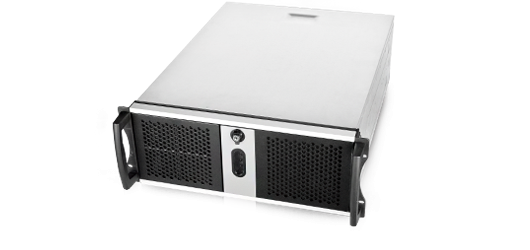

4U Compact Industrial Server Chassis
With entire isolated anti-vibration cage, dust-proof filter, and compact size make it perfect for space-sensitive industrial applications.
Main features
- Supports M/B up to 12” x 9.6”
- Available for rackmount and stand-alone installation
- Dedicated 80 mm fan for HDD cooling

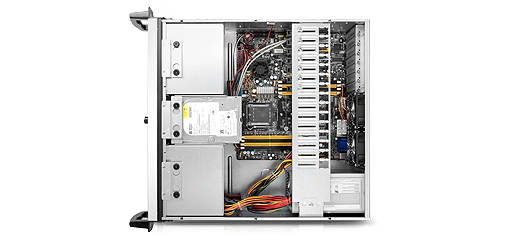

- Truly isolated anti-vibration design on internal HDD and drive cages
- Card retainer to hold low profile and full height add-on cards
- Front 120mm fan with filter for add-on card cooling
- Optional second 3 x 5.25” drive cage for maximum configuration flexibility

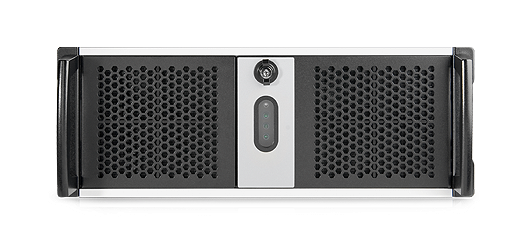

- Supports 1-door or 2-door front bezel configuration
- Supports PS/2 single or mini-redundant PSU
Specifications
| MB Form Factor | ATX (12" x 9.6") |
| Dimension (D x W x H) | 465.2 x 430.0 x 176.0 (mm)18.32" x 16.93" x 6.93" |
| Drive Bay | 1 x External 3.5" ; 3 x External 5.25" ; 4 x Internal 3.5" ; 1 x Slim ODD |
| Storage Backplane | N/A |
| PSU Form Factor | PS/2 Single or 1+1 Redundant |
| Indicator | 1 x Power Status ; 2 x LAN Activity ; 1 x HDD Status |
| Front Control | 1 x Power On/Off ; 1 x System Reset ; 2 x USB2.0/USB3.0 (Option) |
| Cooling Fan | Front: 1 x 120 mm (T=25 mm), PWM,Rear: 2 x 80 mm (T=25 mm) (Option) |
| System Security | Intrusion Switch (Option)Key Lock on Front Door |

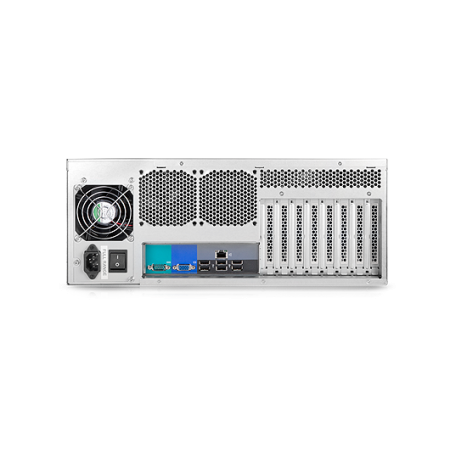

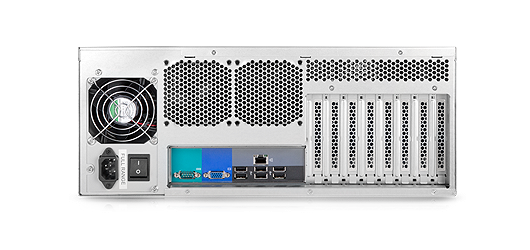

| Expansion Slot Opening | 7 x Full Height |
| Net Weight | 9.5 kg/20.93 lb |
| Gross Weight | 12.3 kg/27.09 lb |
| Cubic Feet | 3.44 |
| Container Loading (Single Packing) | 20': 192 ,40': 432 ,40'H: 504 (Single + Pallet) |
