SIM Free - Multiple Survey LTE Analyser (EU) SNYPER-LTE+ Spectrum

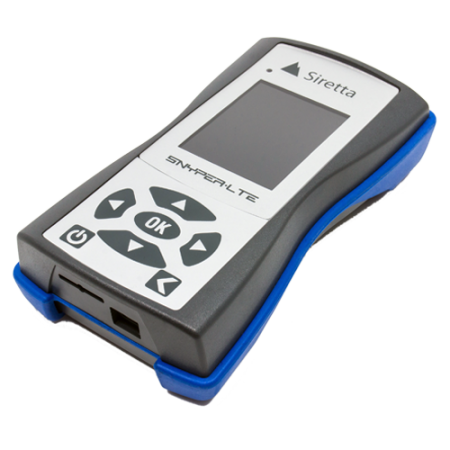

The SNYPER-LTE+ Spectrum (EU) is a high performance, multi-language network signal analyser dedicated to surveying the 4G/LTE, 3G/UMTS & 2G/ GSM European networks. The SNYPER-LTE+ Spectrum (EU) does not require a SIM in order to provide network survey results.

The SNYPER-LTE+ Spectrum (EU) can save multiple surveys locally in memory and incorporates Siretta’s leading liveSCAN feature which allows you to perform real time graphical site surveys on the full colour SNYPER display.

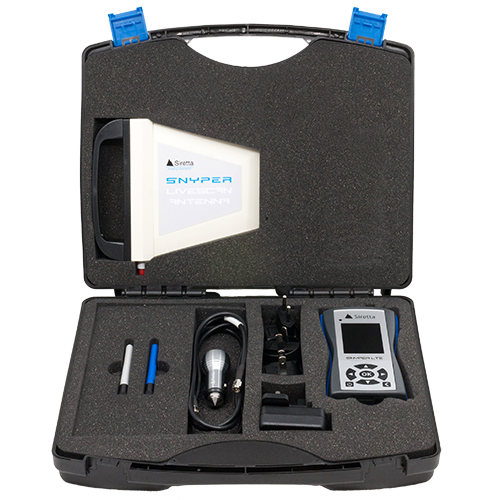

The SNYPER-LTE+ Spectrum is supplied with an omni-directional antenna to detect “hotspots” in buildings and perform site surveys and also includes a directional antenna kit to perform point-to-point antenna alignment. The SNYPER can survey the local network and display results from all discovered cellular cell towers observed in the area. Results are ordered from highest to lowest “visible” base-station signal and the key network parameters of each are displayed.

  • Enhanced cellular surveying of new and existing installations on 4G / LTE, 3G / UMTS and
  • 2G / GSM networks
  • Establish most suitable operator for application
  • Evaluate your “preferred” MNO’s performance
  • Determines “hotspots” & assists with antenna alignment, through Siretta’s liveSCAN feature
  • Results are reported in CSV & graphical HTML format
  • SIM free operation on all bands and technologies
  • Complete network breakdown and summary results


GSM Network Coverage
B3 (1800MHz)
B8 (900MHz)

UMTS Network Coverage
B1 (2100MHz)
B8 (900MHz)

LTE Network Coverage
B1 (2100MHz)
B3 (1800MHz)
B7 (2600MHz)
B8 (900MHz)
B20 (800MHz)

Mechanical Specifications
Operating temperature range: -10 to +50°C
Storage temperature range: -20 to +50°C
Relative humidity: <85% (non-condensing)

Physical Interfaces

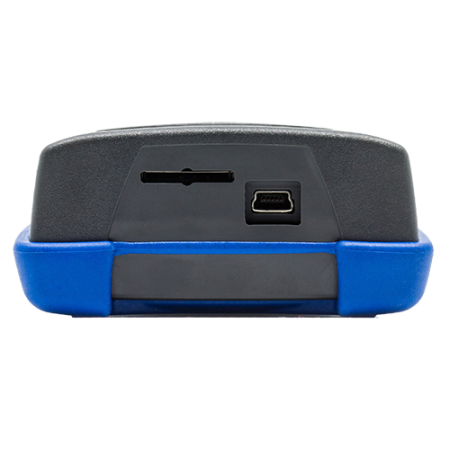

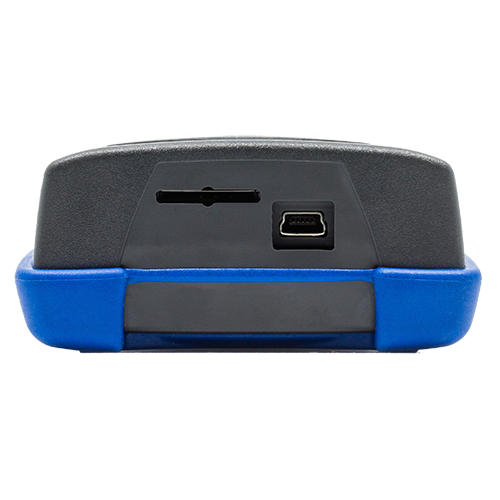

1 x USB 2.0 FS (12 MBits/s)
1 x SMA female cellular antenna connector
1 x Red LED charging indicator

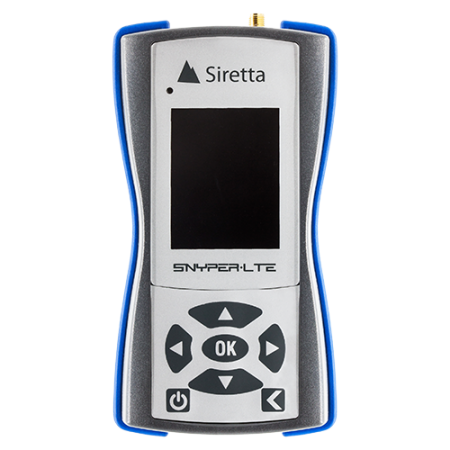

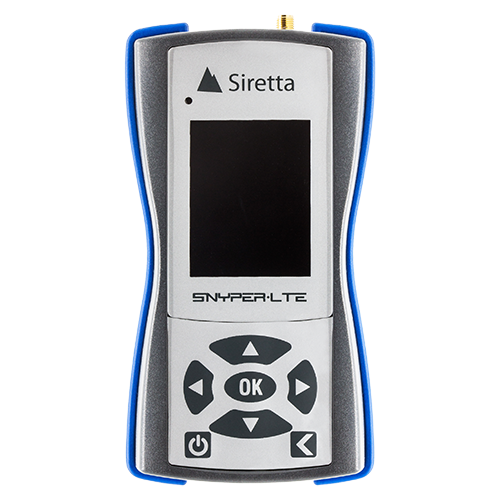

1 x 2.4” Diagonal QVGA 240 x 320 RGB TFT
1 x Tactile multifunction keypad

Power and Consumption
Power: 5V @ 500mA from USB supply
Battery: Lithium Ion 3.7V, 2000mAh
Life: 48 hours based on 20 surveys/day
Warm up time: 2s
