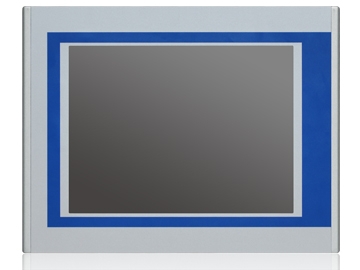

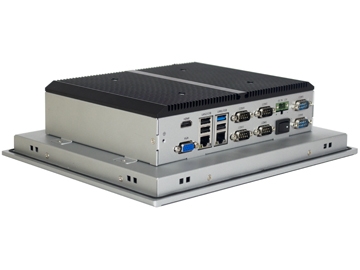

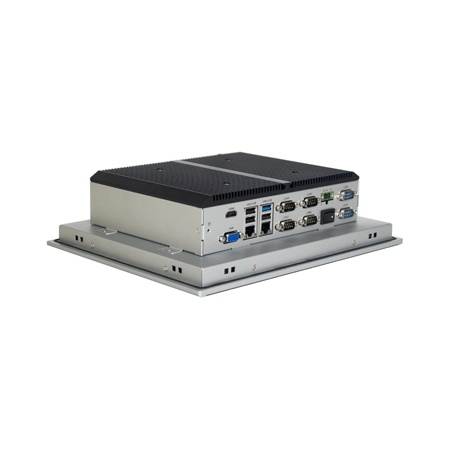

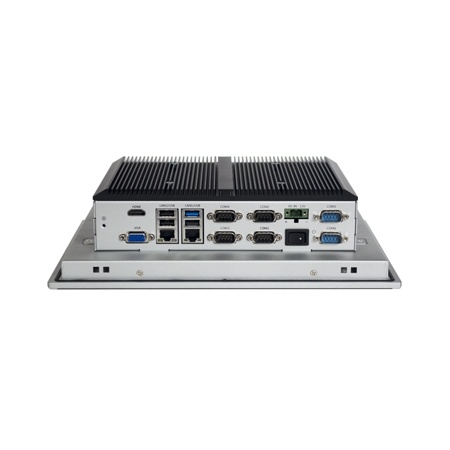

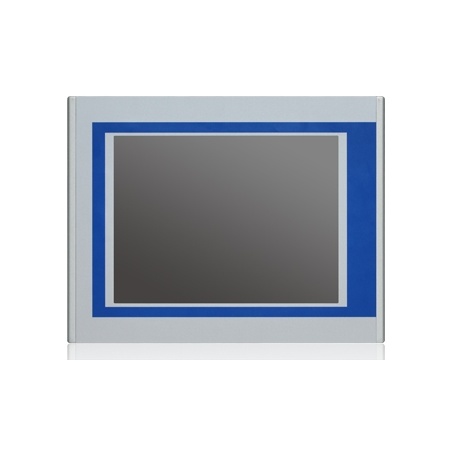

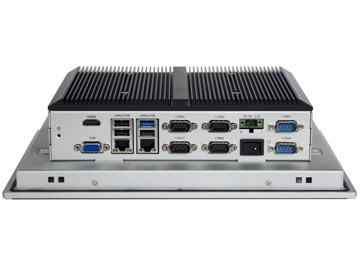

TPC6000-A102

10" Panel PC, resolution 800x600, Resistive Touch, Intel Bay trail J1900 CPU, 2*GLAN, 4*USB, 6*RS232, 1*VGA, 1*HDMI, DC12V Power input(Barebones system,with PSU)

Main features

· Aluminum-magnesium alloy die-casting, cover with PET film, IP65 degree of protection
· Onboard Intel®Bay trail J1900 quad-core processor,2GHZ
· 2 RTL8111F 10/100/1000Mbps RJ45port
· 3 USB2.0 and 1 USB3.0,with electrostatic protection 8KV
· 6 RS232 serial ports(COM1,COM5 and COM6 optional RS485)
· DC12V power input, with reverse polarity protection measures

Specifications

System  parameters

CPU:Onboard   Intel®Bay trail J1900 quad-core processor,2GHz

Chipset:Intel Bay trail  SOC

Memory:Support DDR3 2GB/4GB/8GB memory

Disk:Support SATA 2.5"SSD、HDD and mSATA

Display:Integrated Graphics,support VGA&HDMI

LAN:2 RTL8111F 10/100/1000Mbps RJ45 port

Wifi:1 Mini-PCIe slots, scalable 3G, Wifi wireless card

Speaker:Buit-in small speaker

USB:3 USB2.0 and 1 USB3.0, with electrostatic protection 8KV

COM:6 RS232 serial ports(COM1,COM5 and COM6 optional RS485)

Other I/O:Power switch, DC IN,VGA,HDMI

OS:Win7/Win8/Win10/WES7/Linux/Android



Institutions and power

Front Panel:Aluminum-magnesium alloy die-casting, cover with PET film, IP65 degree of protection

Mounting:Panel/VESA

Power:DC 12V,Overcurrent, overvoltage and reverse polarity protection

Overall dimensions:300.5×234.5×78.05mm(W×H×D)

Box Size:278.5×218.5×72.05mm(W×H×D)

Cut Out Size:282×222 mm(W×H)

Weiht:3.16kg



LCD

Size:10.4" TFT LCD

Max Resolution:800×600

Display area:211.2×158.4mm

Backlight:LED with 10,000H

Luminance:250cd/sqm



Touch Screen

Model:10.4-inch five-wire resistive touch screen

Resolution:4096×4096
Click life:250g efforts, 35 million times

Draw life:250g efforts, 5 million times

Transmittance:More than 81%



Power and Environmental

Operating Temp.:0~+50℃

Storage Temp.:-30~+70℃

Operating Humidity:10~95%(Non-condensing)

Vibration:50~500Hz,1.5G,0.19mm Peak

Shock:10G/peak(11ms sec)

Power in:DC12V

Consumption:21watt

Ordering Information

TPC6000-A102-T : 10.4 inch TFT LCD/Resolution 800*600/Resistive Touch Screen/J1900 CPU/VGA/HDMI/RS232*5/RS232 or RS485*1/LAN*2 /USB 2.0*3/USB 3.0*1/DC12V
TPC6000-A102-TW: 10.4 inch TFT LCD/Resolution 800*600/Resistive Touch Screen/J1900 CPU/VGA/HDMI/RS232*5/RS232 or RS485*1/LAN*2 /USB 2.0*3/USB 3.0*1/DC12V/WIFI
TPC6000-A102-TA:   10.4 inch TFT LCD/Resolution 800*600/Resistive Touch Screen/J1900 CPU/VGA/HDMI/RS232*4/RS485*1/RS232 or RS485*1/LAN*2 /USB 2.0*3/USB 3.0*1/DC12V
TPC6000-A102-TAW:   10.4 inch TFT LCD/Resolution 800*600/Resistive Touch Screen/J1900 CPU/VGA/HDMI/RS232*4/RS485*1/RS232 or RS485*1/LAN*2 /USB 2.0*3/USB 3.0*1/DC12V/WIFI
TPC6000-A102-TB:   10.4 inch TFT LCD/Resolution 800*600/Resistive Touch Screen/J1900 CPU/VGA/HDMI/RS232*3/RS485*2/RS232 or RS485*1/LAN*2 /USB 2.0*3/USB 3.0*1/DC12V

TPC6000-A102-TBW:   10.4 inch TFT LCD/Resolution 800*600/Resistive Touch Screen/J1900 CPU/VGA/HDMI/RS232*3/RS485*2/RS232 or RS485*1/LAN*2 /USB 2.0*3/USB 3.0*1/DC12V/WIFI
